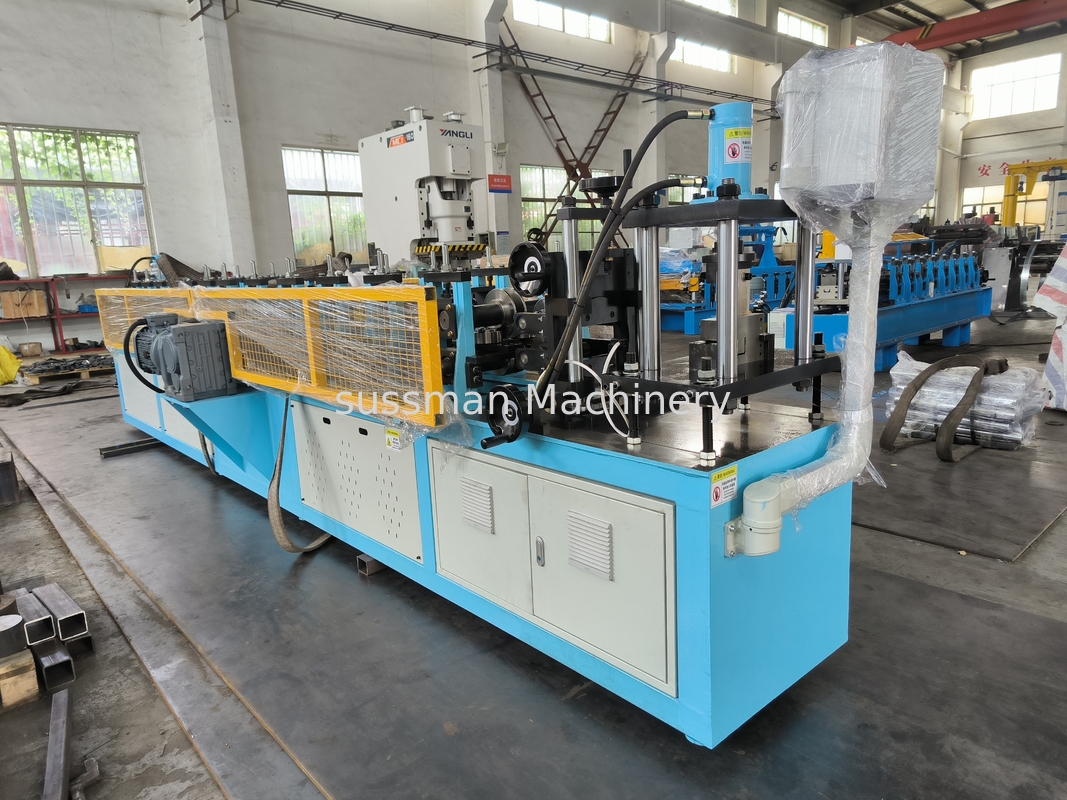

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine

22*33mm 50*33mm Width Adjustable U Profile Roll Forming Machine

Applications of U Profile (23×33mm – 90×33mm, 1.0–1.5mm Thickness)
U-shaped steel profiles, commonly known as U channels or U tracks, are widely used in various construction and industrial
applications due to their lightweight design, high strength-to-weight ratio, and ease of installation. The U profiles with
dimensions 23×33mm, 50×33mm, 60×33mm, 70×33mm, and 90×33mm, and thicknesses ranging from 1.0 to 1.5mm, are particularly suited for the following uses:

----------------------------------------------------------------------------------------------------------------------------------

1. Light Steel Framing Systems
These U profiles are commonly used in light gauge steel construction, especially as top and bottom tracks in wall framing systems.
When paired with C-shaped studs, they form non-load-bearing or partition wall structures in both residential and commercial buildings.
* 23×33mm and 50×33mm U profiles are ideal for use in light-duty partition walls and ceiling perimeter frames.

* 60×33mm, 70×33mm, and 90×33mm are suitable for higher partitions, stronger wall frameworks, and applications where additional rigidity is required.

Advantages:
* Fast and easy installation.

* Corrosion resistance when galvanized.

* Precise dimensions for accurate framing.

* Compatible with drywall systems.

----------------------------------------------------------------------------------------------------------------------------------

2. Ceiling Suspension Systems
Smaller-sized U profiles (e.g., 23×33mm) are often used in ceiling frameworks, functioning as support channels or perimeter tracks
in suspended ceilings, acoustic ceiling panels, and plasterboard ceiling systems.

----------------------------------------------------------------------------------------------------------------------------------

3. Electrical and Mechanical Support Channels
U profiles with 1.2–1.5mm thickness are used to support electrical conduits, cable trays, HVAC ducts, and plumbing pipes in commercial and industrial installations. They serve as mounting rails and fixing brackets in utility support structures.

----------------------------------------------------------------------------------------------------------------------------------

4. Furniture and Interior Fixtures
In interior decoration and modular furniture systems, U profiles are sometimes used as framing elements, edge trims, or panel supports due to their sleek appearance and structural simplicity.

----------------------------------------------------------------------------------------------------------------------------------

5. Industrial Framing and Shelving
Heavier-duty U profiles such as 70×33mm and 90×33mm can be used in the fabrication of metal shelving, storage racks, and light-duty framing structures in warehouses and workshops.

----------------------------------------------------------------------------------------------------------------------------------

Summary
The U profiles ranging from 23×33mm to 90×33mm with 1.0–1.5mm thickness are versatile, cost-effective, and structurally reliable.
They are widely adopted in the construction, interior finishing, mechanical, and industrial sectors. Depending on the specific size and thickness, they can be used for anything from light ceiling grids to rigid wall framing and equipment support systems.

Technical Parameter


Machine List
